XQ144-01

box

220-240V AC ON-OFF

XQ144-01

Finishes

Data sheet

  • Code XQ144-01
  • System power consumption 4,3W
  • Efficacy 86lm/W
  • Light source LED
  • Light source lifetime L80 (B10) 50.000h
  • Colour temperature 3000K Ra>80
  • Light distribution diffused
  • Power supply 220-240V AC
  • Frequency 50/60Hz
  • Electrical configuration ON-OFF
  • Driver integrated included
  • Nominal luminous flux 430lm
  • Lumen output 344lm
  • Efficiency 80%
  • Weight 0,33 Kg
  • Protection degree IP65 IP44
  • Shock resistance rating IK08
  • Glow wire test performance 850°
  • Packing dimensions 11,4 x 11,7 x 2,6 cm
BOX - XQ144-01

Ceiling or wall lighting fixture for outdoor spaces, with direct light emission.
Die-cast aluminium structure in white or black powder paint.
Silicone gasket.
Diffuser in thermoplastic material with opaline finish.
Closing screen in transparent UV-resistant thermoplastic material.
Rubber cable grommet.
Stainless steel screws.

Application

Application - BOX - XQ144-01
Technical drawing - BOX - XQ144-01

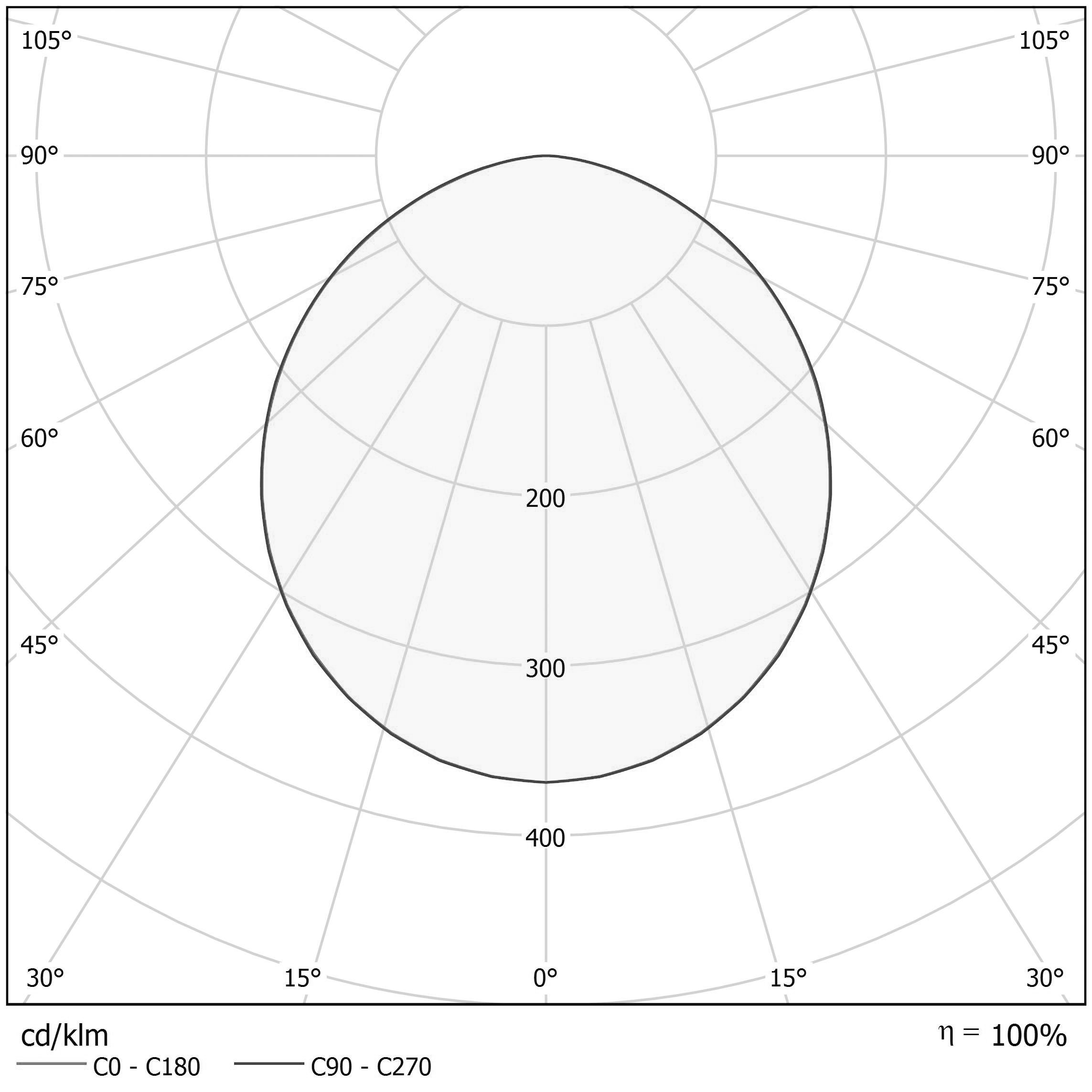

Polar diagram - BOX - XQ144-01
