to-be
24V DC 24VM02617.065.0410
Finishes
Data sheet
- Code M02617.065.0410
- System power consumption 5,3W
- Efficacy 72.6lm/W
- Light source LED
- Light source lifetime L70 (B50) 60.000h
- Colour temperature 3000K Ra>90
- Light distribution diffused
- Power supply 24V DC
- Electrical configuration 24V
- Driver remote not included
- Nominal luminous flux 550lm
- Lumen output 363lm
- Efficiency 66%
- Weight 0,45 kg
- Protection degree IP40
- Colour tollerances SDCM 3
- Packing dimensions 5,0 x 105,0 x 10,0 cm

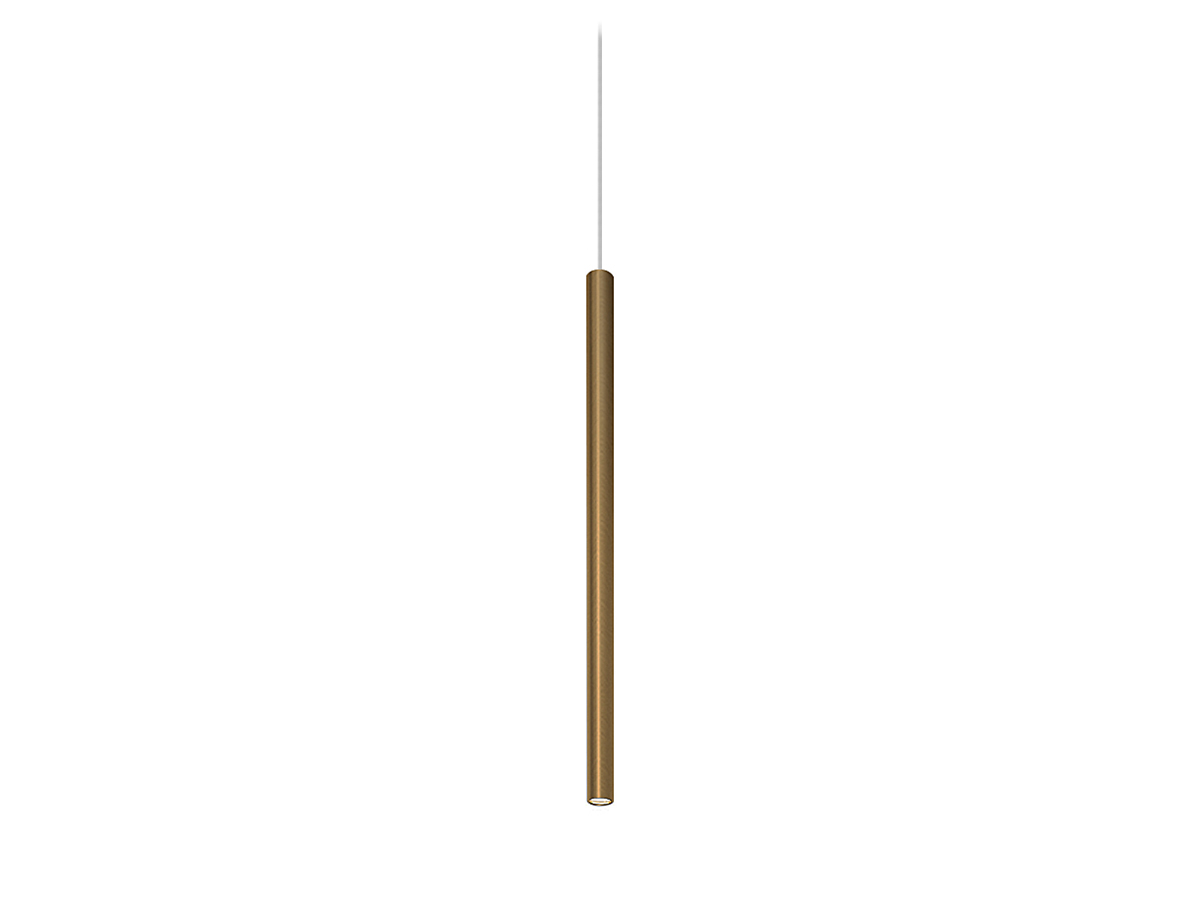

Multiple suspension lighting fixture for interiors, with direct light emission.
Extruded aluminium structure in white, mat black, bronze or mat brass polyacrylic paint or with gold leaf coating.
Extruded aluminium heat sink.
Modelled polycarbonate diffuser with opaline finish.
Turned brass end cap in polyacrylic paint.
2m (78,7") long suspension and power cable in transparent PVC.
Provided without power canopy, complete with cable clamp on the cable's free extremity.
Technical drawing
Polar diagram
