ginevra
220-240V AC dimmable (DALI/Push DIM)P09280.030.0502
Finishes
Data sheet
- Code P09280.030.0502
- System power consumption 15W
- Efficacy 93.13lm/W
- Light source LED
- Light source lifetime L80 (B20) 80.000h
- Colour temperature 2700K Ra>90
- Light distribution diffused
- Power supply 220-240V AC
- Frequency 50/60Hz
- Electrical configuration dimmable (DALI/Push DIM)
- Driver integrated included
- Nominal luminous flux 1804lm
- Lumen output 1397lm
- Efficiency 77.4%
- Glare rating UGR < 19
- Weight 2,00 kg
- Protection degree IP20
- Colour tollerances SDCM <3
- Packing dimensions 46,0 x 46,0 x 16,0 cm

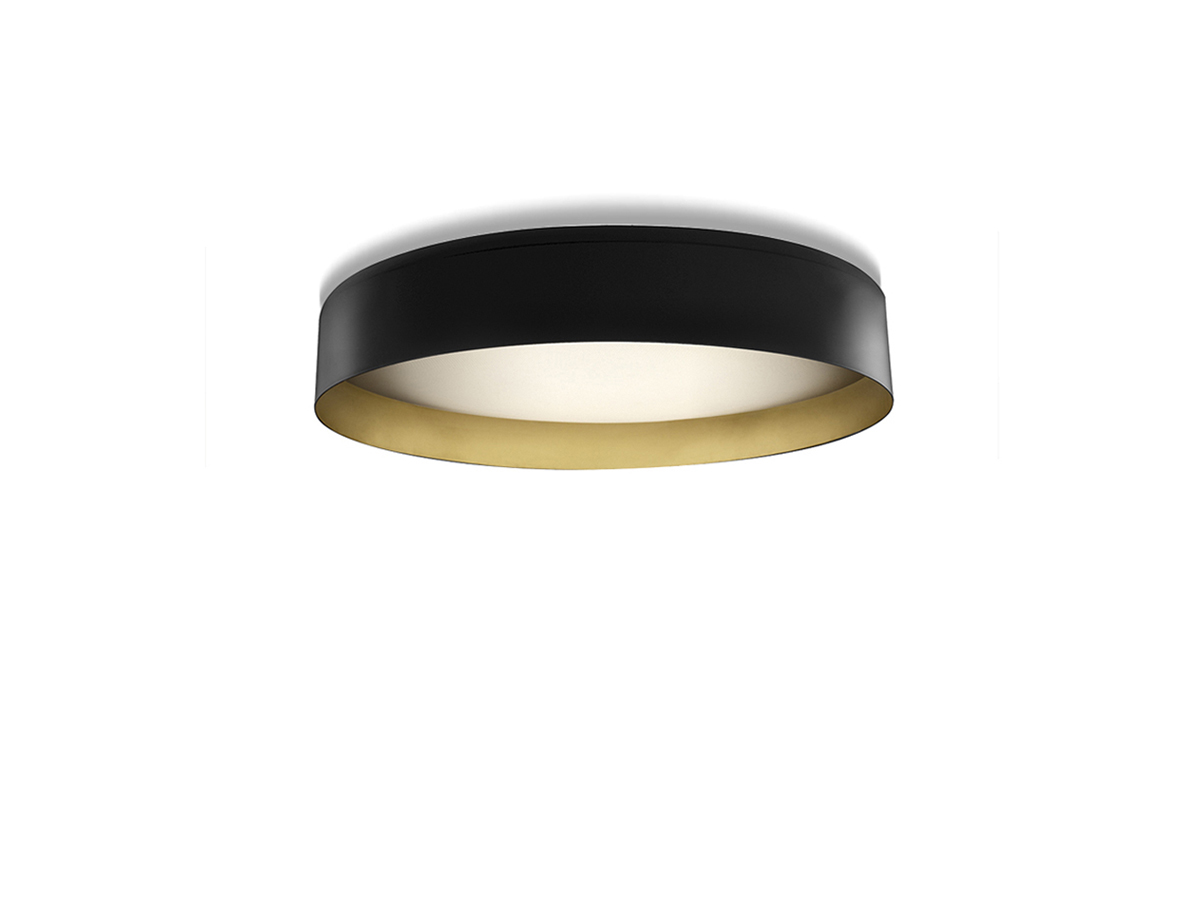

Ceiling or wall lighting fixture for interiors, with direct light emission.
Turned aluminium structure in mat black and gold or white and gold polyacrylic paint.
Pickled sheet metal wiring support plate in polyacrylic paint.
Moulded PMMA micro-prismatic diffuser.
Application
Technical drawing
