adamas
220-240V AC dimmable (Push DIM)C18219.033.0527
Data sheet
- Code C18219.033.0527
- System power consumption 9W
- Efficacy 69.33lm/W
- Light source LED
- Light source lifetime L70 (B50) 60.000h
- Colour temperature 2700K Ra>90
- Light distribution diffused
- Power supply 220-240V AC
- Frequency 50/60Hz
- Electrical configuration dimmable (Push DIM)
- Driver integrated included
- Nominal luminous flux 1344lm
- Lumen output 624lm
- Efficiency 46.4%
- Weight 5,60 kg
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 0,0 x 0,0 x 0,0 cm

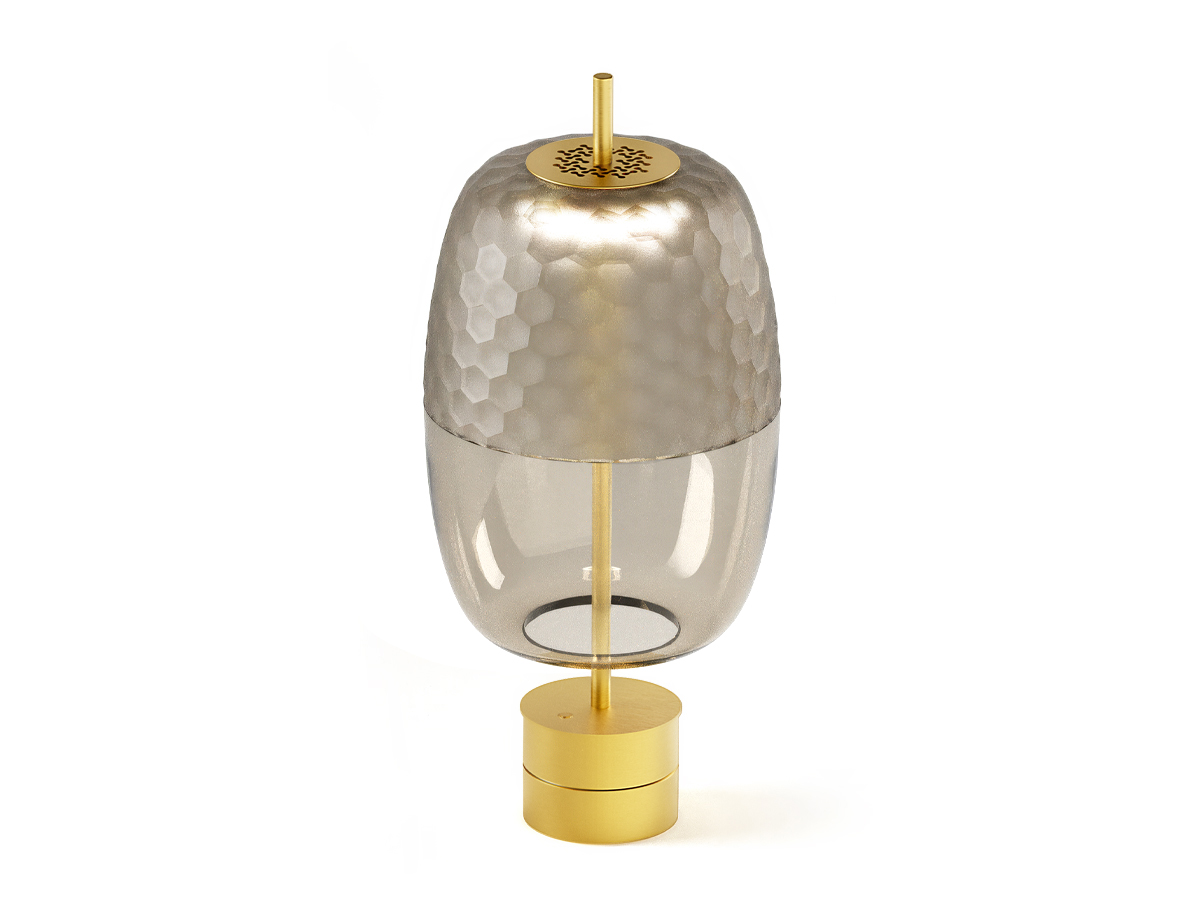

Table lighting fixture for interiors, with direct light emission.
Aluminium frame with polyacrylic paint finish in mat black or mat brass.
Diffuser screen in acrylic material with satin finish.
Handmade and hand-ground blown glass in smoke grey colour.
Steel closing plate with polyacrylic paint finish.
Metal base with polyacrylic paint in mat black or mat brass finish, with integrated dimmer button.
Supplied complete with black fabric power cable and plug adapter.
Download
Technical drawing
