PLANET RING

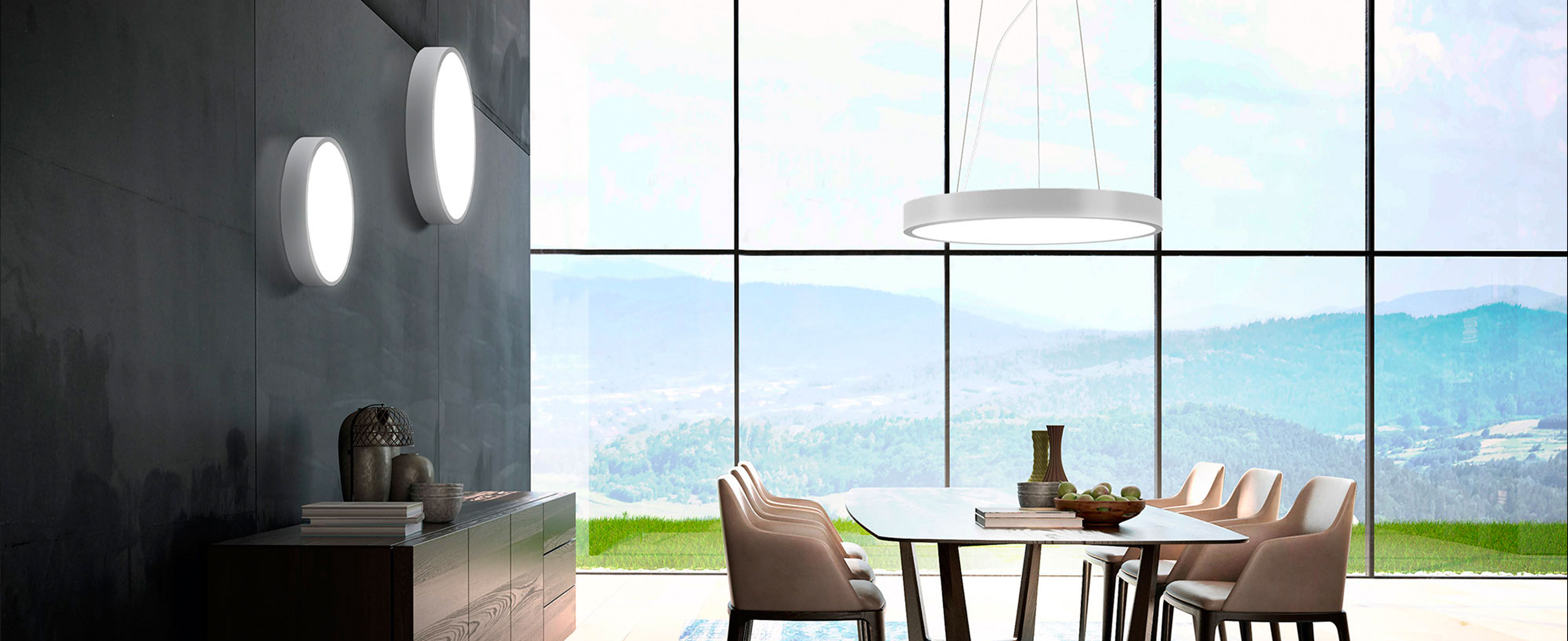

Suspension, wall/ceiling and recessed lamp in metal with high transmittance opal polycarbonate diffuser screen. Emission of direct light provided by a LED module. Possibility of having LED 4000K upon request. All versions are also available with DALI / PUSH DIM dimming or emergency light. Fixture finished in polyacrylic paint in white (custom colors available on request). The diffuser screen is fastened with magnets. LED board with quick connection for easy access to the electronic components on board. Delivery of the product in a single piece. Ideal for offices, hospitality facilities or residential use.
Studio Tecnico Panzeri 2016
Finishes
- white
suspension
Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC ON-OFF


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC dimmable (DALI/Push DIM)


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC emergency


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC ON-OFF


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC dimmable (DALI/Push DIM)


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC emergency


ceiling
Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC ON-OFF


Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC dimmable (DALI/Push DIM)


Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC emergency


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC ON-OFF


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC dimmable (DALI/Push DIM)


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC emergency


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC ON-OFF


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC dimmable (DALI/Push DIM)


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC emergency


recessed
Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC ON-OFF


Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC dimmable (DALI/Push DIM)


Diameter 40 cm
LED 28W3000K Ra>90 2199lm220-240V AC emergency


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC ON-OFF


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC dimmable (DALI/Push DIM)


Diameter 70 cm
LED 71W3000K Ra>90 5864lm220-240V AC emergency


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC ON-OFF


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC dimmable (DALI/Push DIM)


Diameter 100 cm
LED 142W3000K Ra>90 11727lm220-240V AC emergency
